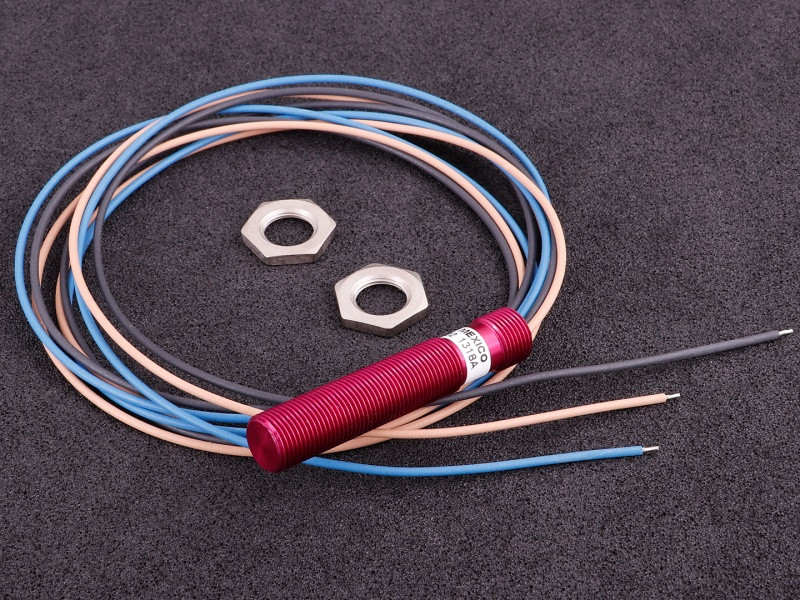

Hall sensor for Crankshaft / Camshaft (Cherry)
Artnr: 895
Stock Status: 1-3 Days delivery time
The product is ordered per order.
Description
The well-known so-called "Cherry" sensor.
Pulldown output. Requires pullup resistors (usually built into the ECU). Detects steel targets. 5-24v supply voltage.
Including nuts for mounting the sensor. This also works as a general crank trigger (tested with 60-2 trigger wheels up to 8000rpm with MaxxECU).
Brown = Supply voltage (5-24V)
Black = Output signal
Blue = Ground
M12x1.0
