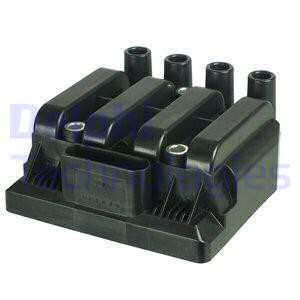

4 channel ignition coil 4cyl Delphi
Artnr: 1020-GN1038312B1
Stock Status: 1-1.5 Weeks Delivery Time
1-1.5 Weeks Delivery Time
Description
Note! Cheaper ignition coil from Delphi. For higher power output, rally, rallycross etc. we recommend the Bosch model.
Ignition coil for 4cyl with built-in ignition stages and 4 channels and can thus be run sequentially on a 4-cylinder engine with ignition cables.
The connection for the ignition cables in the holes is an M4 threaded stud that sticks up. VAG style.
Cranking dwell: 4-6ms
Running dwell: 2-3ms
Pinout:
1: Ground
2: Control signal 1
3: Control signal 2
4: Control signal 3
5: Control signal 4
6: 12v
Link to Contact
