Wiring Digital Lighting 1200
Description
ABOUT DIGITAL LIGHTNING 1200

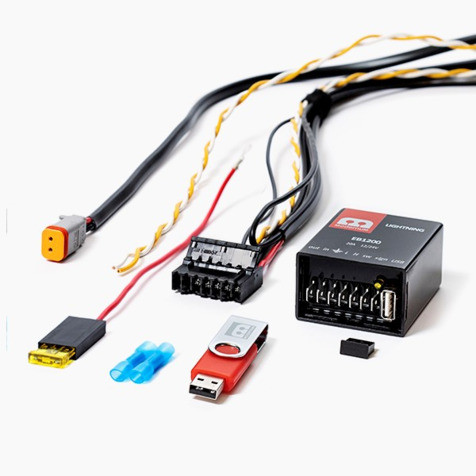

Digital Lightning 1200 is the latest addition to Modernum's product line of quality wiring for CAN-controlled auxiliary lights. It is the optimal auxiliary light wiring for users who are in need of a multi-competent, easy-to-handle and affordable product. Like its predecessors, Digital Lightning 1200 is a competent product of professional standard with high quality. Digital Lightning 1200 is easily adapted to your particular car. The adapted software, which is easily downloaded, does not generate any error codes in the car's electrical system. The auxiliary light kit is complete, and all installation takes place in the engine compartment with the included vehicle-specific cables and accessories. Something that Modernum has always prioritized is that the installation should be easy to perform, and that one and the same product should fit all affected vehicles.
TECHNICAL SPECIFICATIONS FOR DIGITAL LIGHTNING 1200
Digital Lightning 1200
Item number 65-1200
Operating voltage 12/24VDC
Maximum continuous
Current load 13A (20A without DT connector)
Sealed Yes
Relay type Electronic (Solid State)
Current consumption 3.6mA
Dimensions (ECU) 60x50x32mm
Digital input Yes (CAN bus)
Analog input Yes
E-approved Yes
