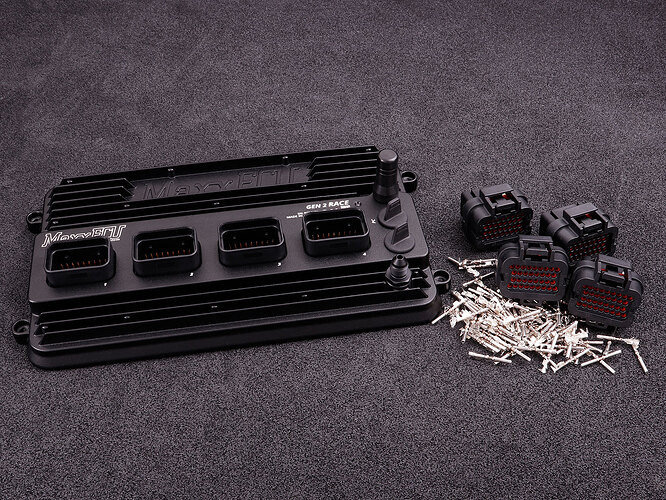

MaxxECU GEN2 RACE, with connector kit

MaxxECU GEN2 RACE technical

-IP68 water-protected.
-Superseal 1.0 connectors.
-550 kPa MAP sensor (4.5 bar / 65 PSI boost), user-serviceable, with BSP 1/8 thread.
-3-axis accelerometer (up to 8 G).
-ARM dual core CPU.
-6-22V operating voltage.
-16GB internal log capacity, 1000Hz, all 1600+ channels.
-USB-C 480mbit/s (MTune PC communication).
-USB-C 12mbit/s (tablet charging).*
-WIFI communication with MTune and MDash.*
-Bluetooth connectivity with MDash.
-Dual CAN bus for expansion modules, OEM vehicle CAN, OBDII, CAN gearbox control.
-Resolution on ignition: 0.1 degrees.
-Resolution on injectors: 0.001 ms.
-Performs fuel and ignition calculations 3,000 times per second.
-200Hz sampling rate on all EGT inputs.
-2000Hz sampling rate on analog/digital inputs.
-Weight: 700g.
-240x138x35mm including protruding connectors.
-Black powder-coated aluminium case.
-All inputs and outputs are safeguarded against overvoltage, reverse polarity, and short circuits.

*WIFI and USB Port2 not yet supported for communication - coming in 2026.

MaxxECU GEN2 RACE inputs

-8 pulse inputs (VR/HALL): 2 with selectable 5/12V power supply, all with selectable pullups.
-24 Analog inputs (selectable pullups).
-8 Exhaust Gas Temperature inputs (TYPE-K).
-Dual wideband lambda (LSU 5.2/4.9/4.2).
-Dual knock sensor input.

MaxxECU GEN2 RACE outputs
-16 injectors (Peak-hold high/low impedance) / GP outputs.
-12 IGN / GP outputs (selectable +5V/12V/GND).
-8 GP Outputs (GND).
-4 GP Outputs (+12V).
-4 GP Outputs (H-bridge/E-Throttle).
