Hall sensor for Crankshaft / Camshaft (copy)
Super fast quality industrial hall sensor with built-in pull-up! Which means that it just needs to be connected to voltage, ground and signal on your motor control system without either connecting a pull-up resistor or having to activate it through …
Artnr: 1228
Stock Status:
In Stock
Delivery Status: Will be sent as soon as possible
The product is normally in stock for direct delivery.
Description
Super fast quality industrial hall sensor with built-in pull-up! Which means that it only needs to be connected to voltage, ground and signal on your motor control system without connecting a pull-up resistor or having to activate it through software.
Can be run on either 5v or 12v.
Flange mounting. See picture for exact dimensions of the body.
Thread locking is highly recommended!
Red: 12v / 5v
Black: Ground
Black/White: Signal

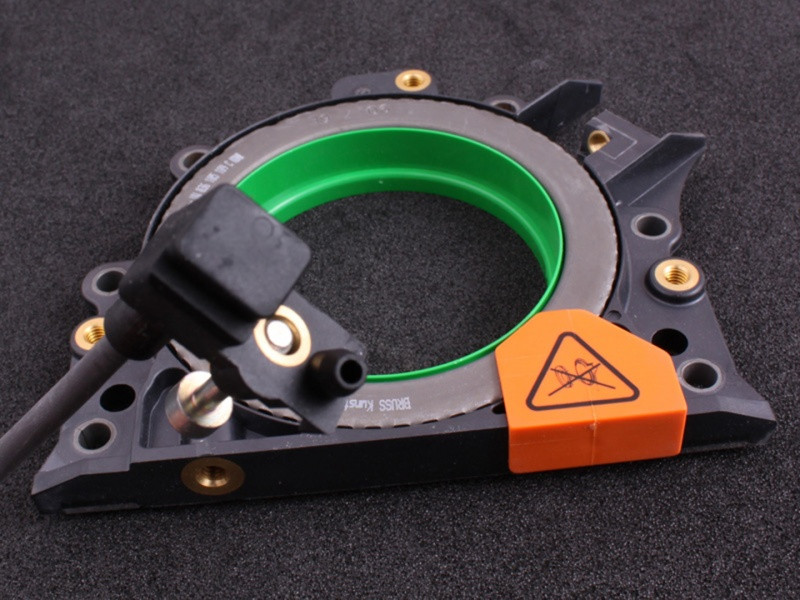

Maximum distance to trigger wheel approx. 2mm, see picture!
