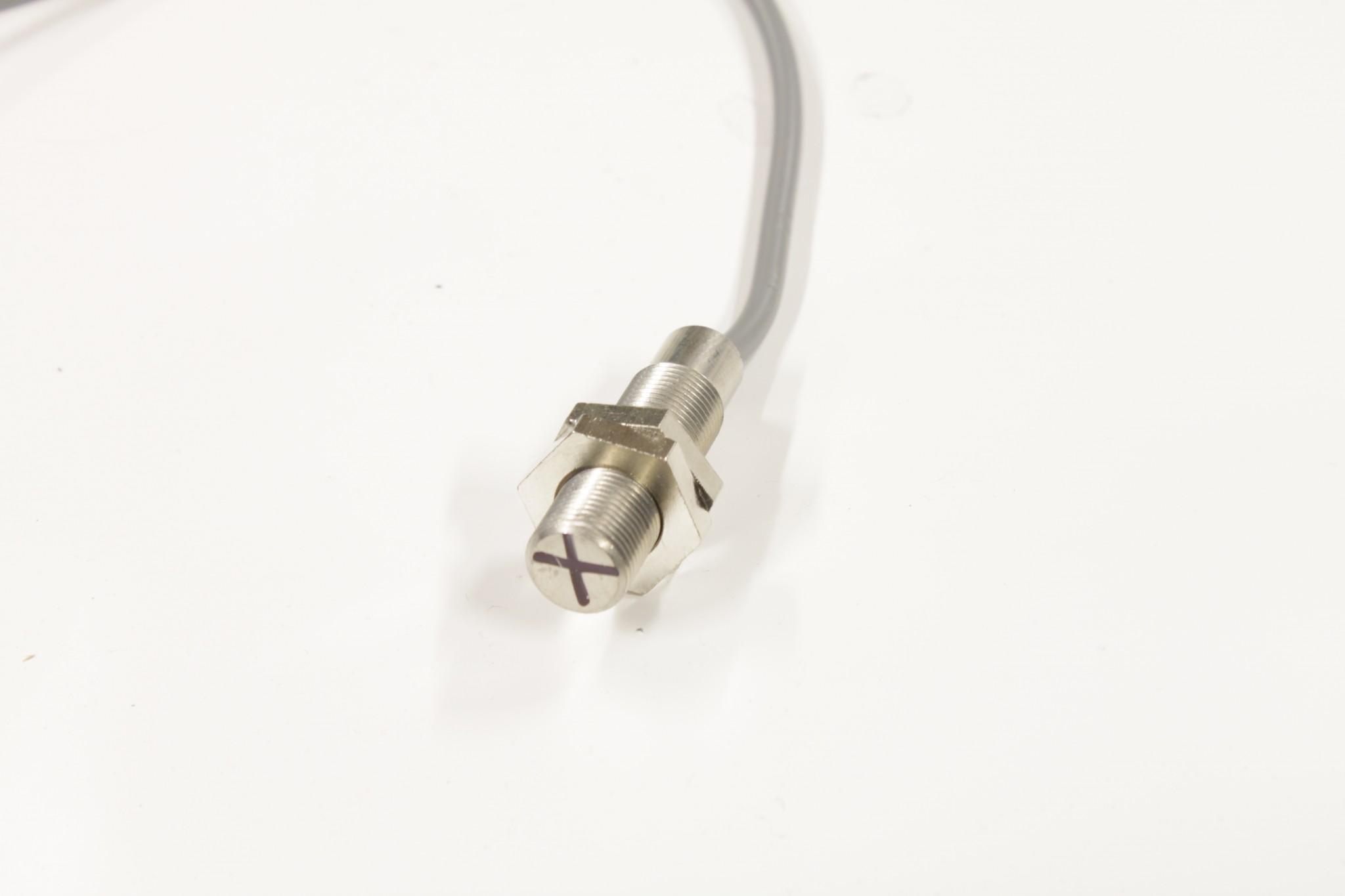

Hall sensor for Crankshaft / Camshaft

Super fast quality industrial hall sensor with built-in pull-up! Which means that it only needs to be connected to voltage, ground and signal on your motor control system without connecting a pull-up resistor or having to activate it through software.

Can be run on either 5v or 12v.

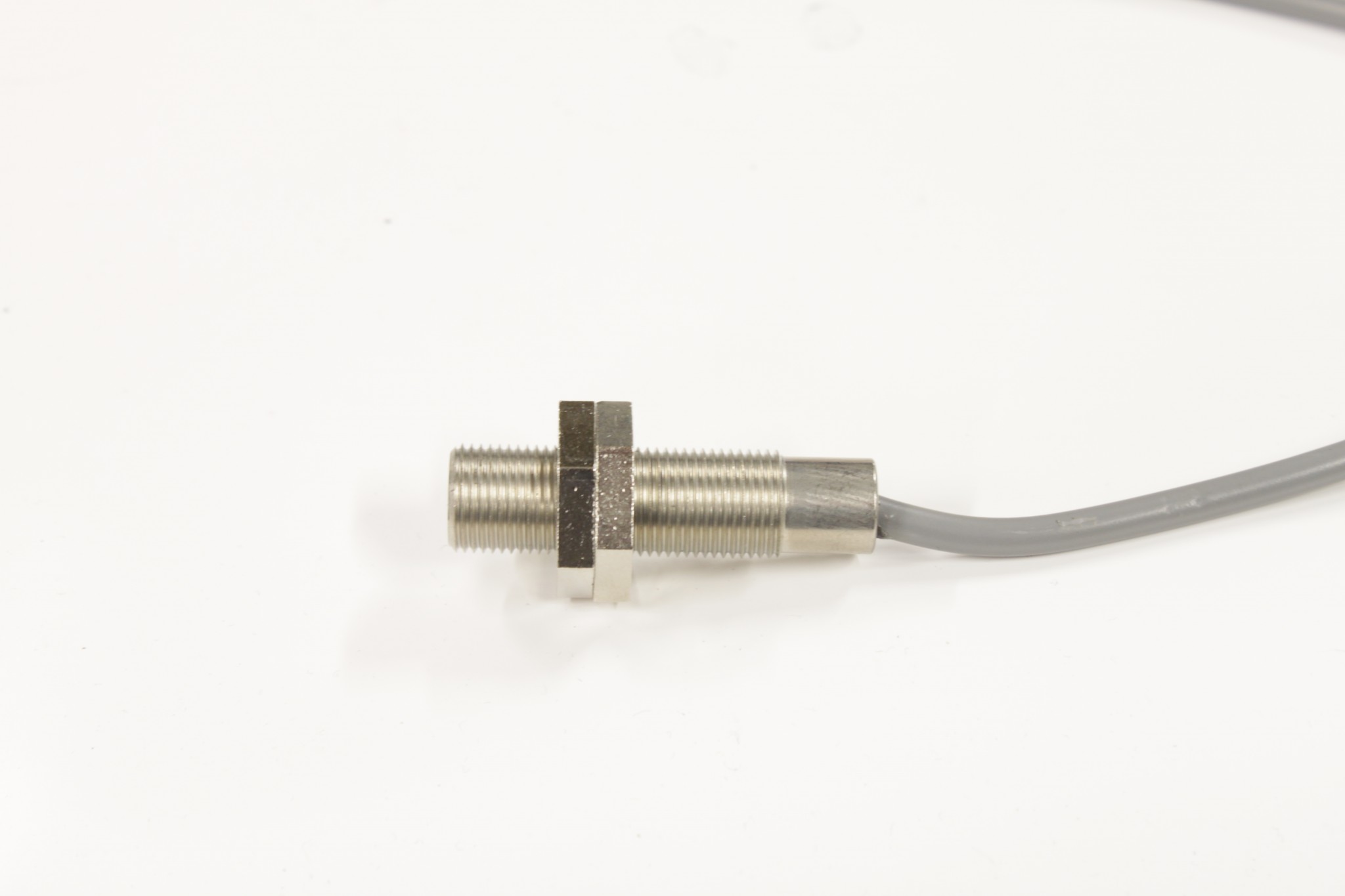

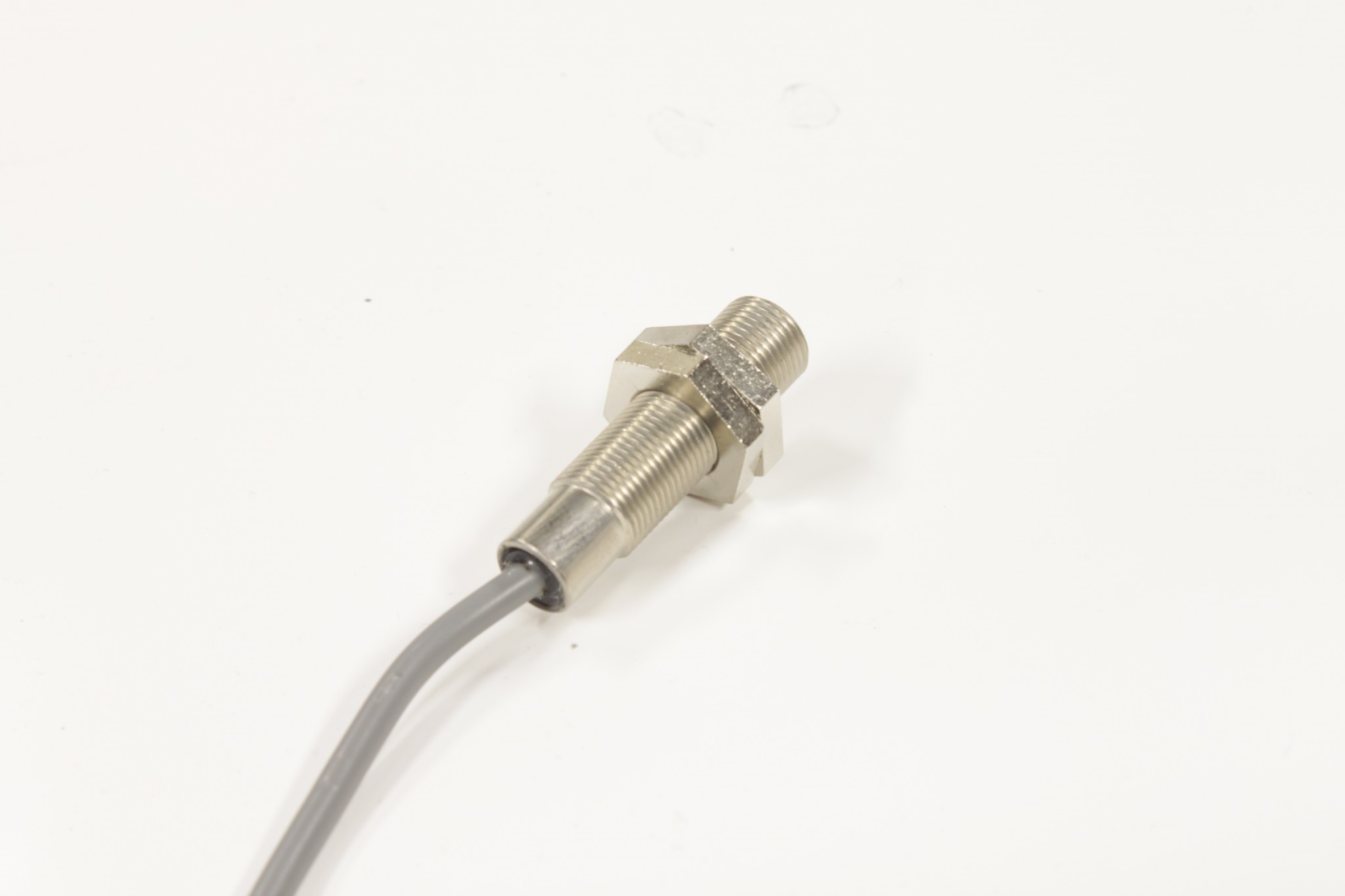

M12x1 thread on the body with two nuts to tighten it.
Thread locking is highly recommended!

Red: 12v / 5v
Black: Ground
Blue: Signal

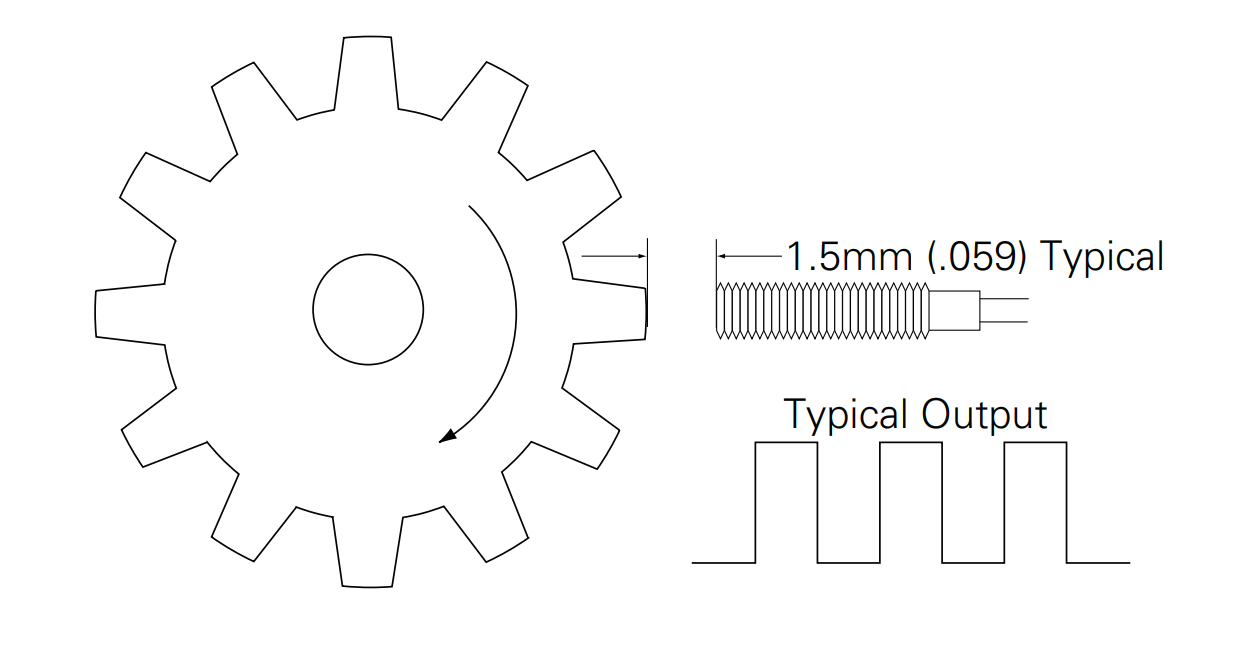

Distance to trigger wheel should be approx. 1.5mm as shown in the picture
