PTE 8385E Dual Ball Bearing, Billet, 1700HP

Pulsar
Artnr: 102108007/102108008/102108009
Stock Status: External warehouse, approx. 1-1.5 week delivery
The product is in an external warehouse where the stock status may be uncertain.
22,699 kr
Including Tax: 4,539.80 kr
Pcs.

Description

Ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion

Billet Compressor Wheel with Extended Tapered Tip Technology

Inconel 713c 11 Blade Turbine Wheel

T4 divided and V-Band In/out are available in turbine housing option

Vband Flange kit for the exhaust housing included

Max Engine Horsepower: 1700

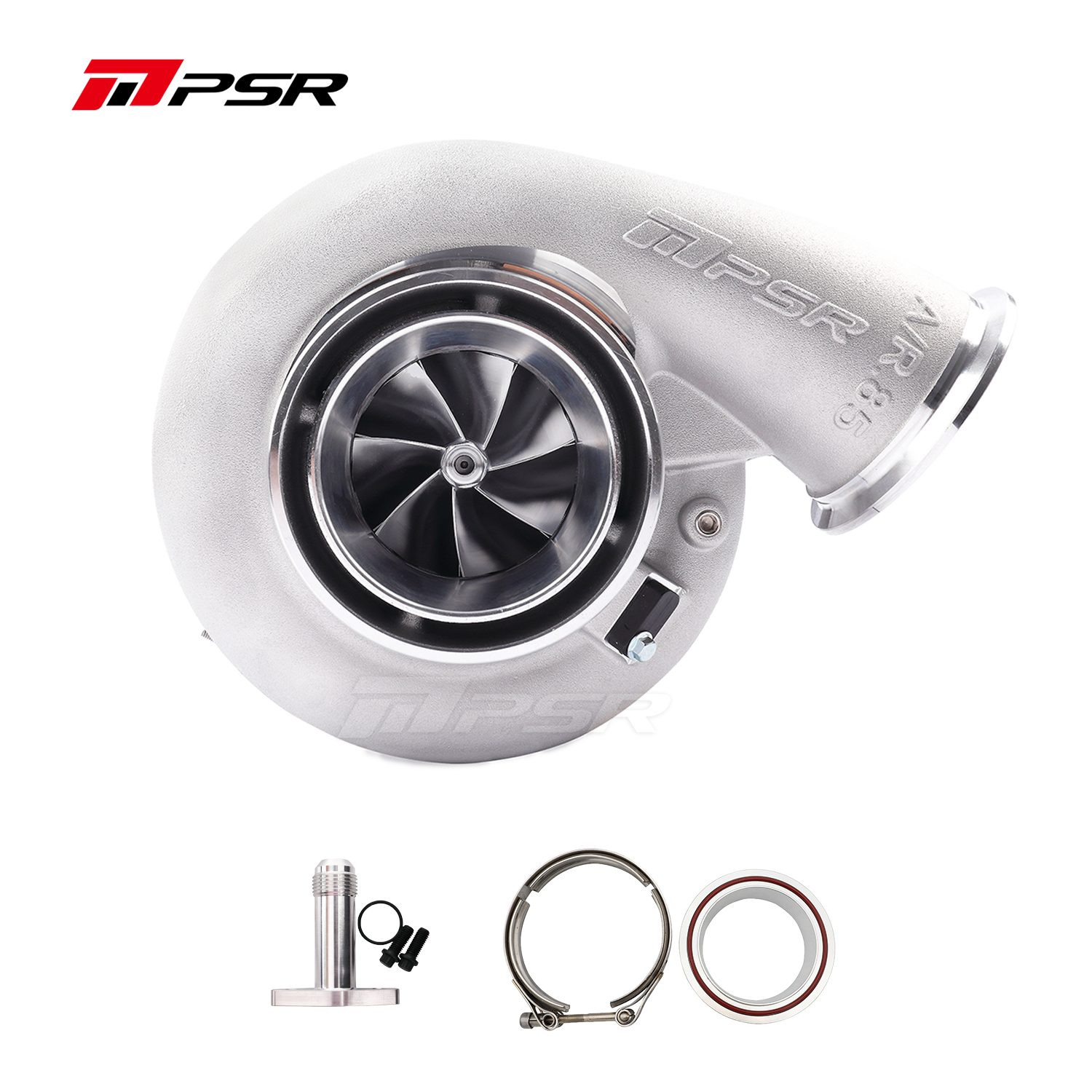

Billet Compressor Wheel: 83x 110.5mm, 7+7 Blade

Turbine Wheel: 85 x 89.5mm, 11 Blade

Bearing System: Dual Ball Bearing (provides optimal turbo response & better durability by reducing the shaft motion)

Compressor Cover: 5.0” Hose Inlet/3″ V-Band Outlet

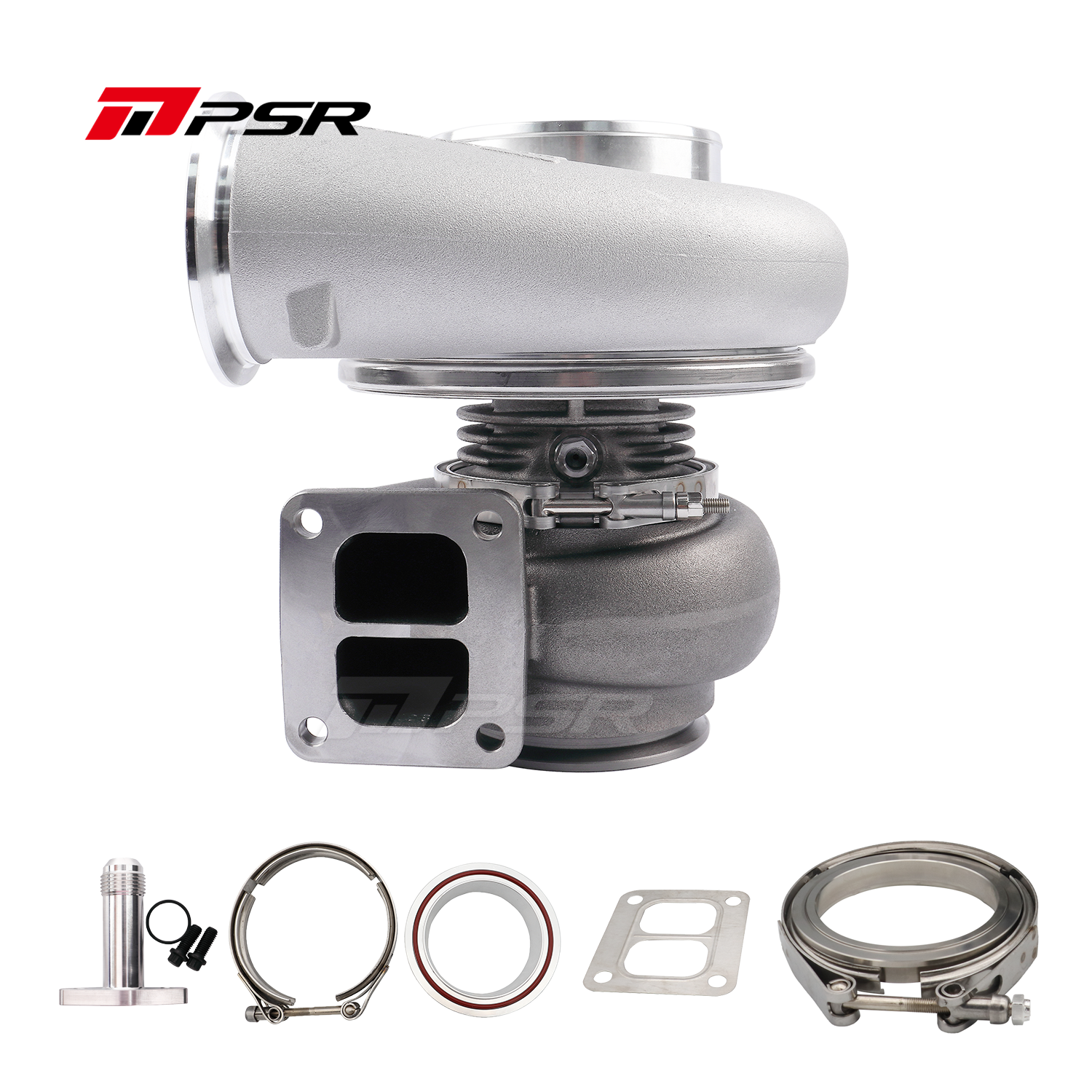

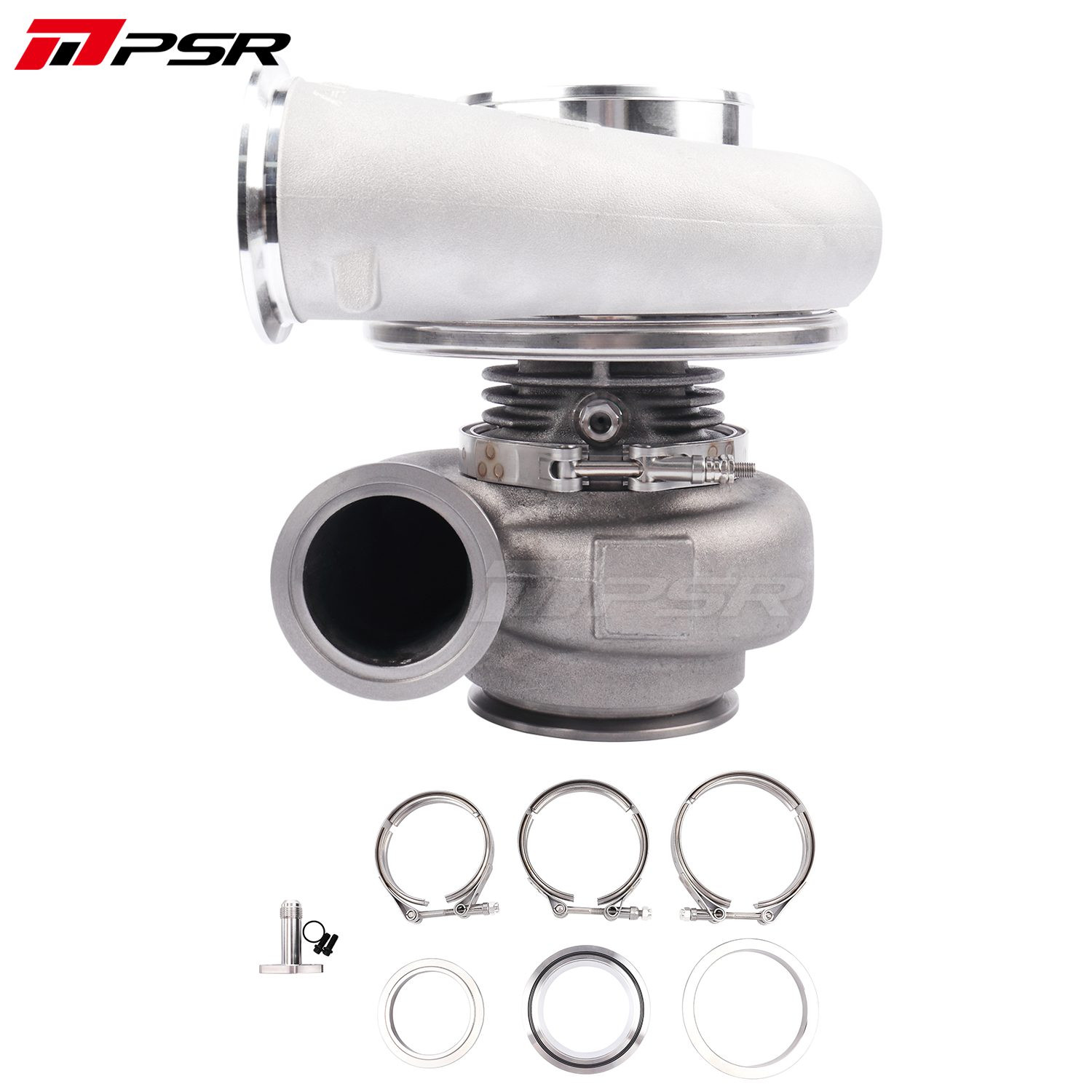

Turbine Housing: T4 Divided 1.28A/R(4″ V-band Outlet); Dual V-Band 1.15A/R(3″ V-band Inlet, 4″ V-band Outlet); Dual V-Band 1.28A/R(3″ V-band Inlet, 4″ V-band Outlet)

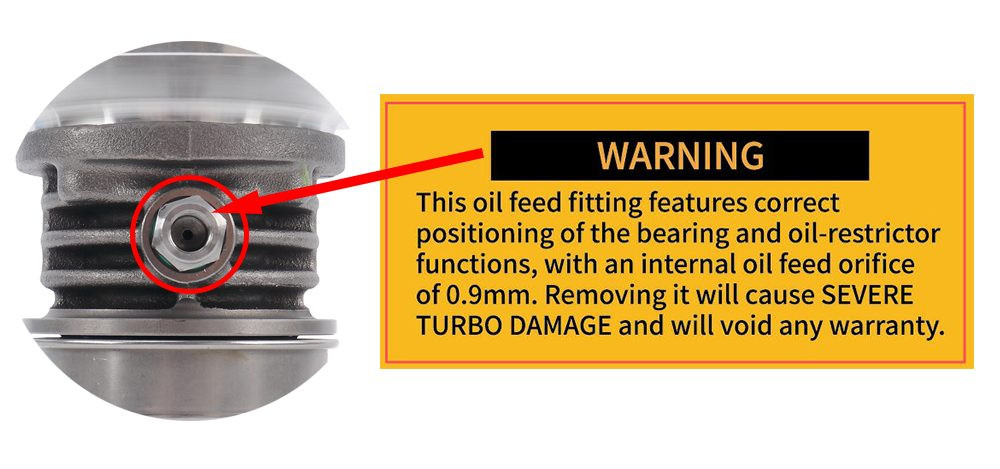

The internal oil feed port is 0.9mm(An oil restrictor is not needed)

Oil feed fitting: 1/8-27 NPSF(Drawing)

Oil Drain: -12AN
