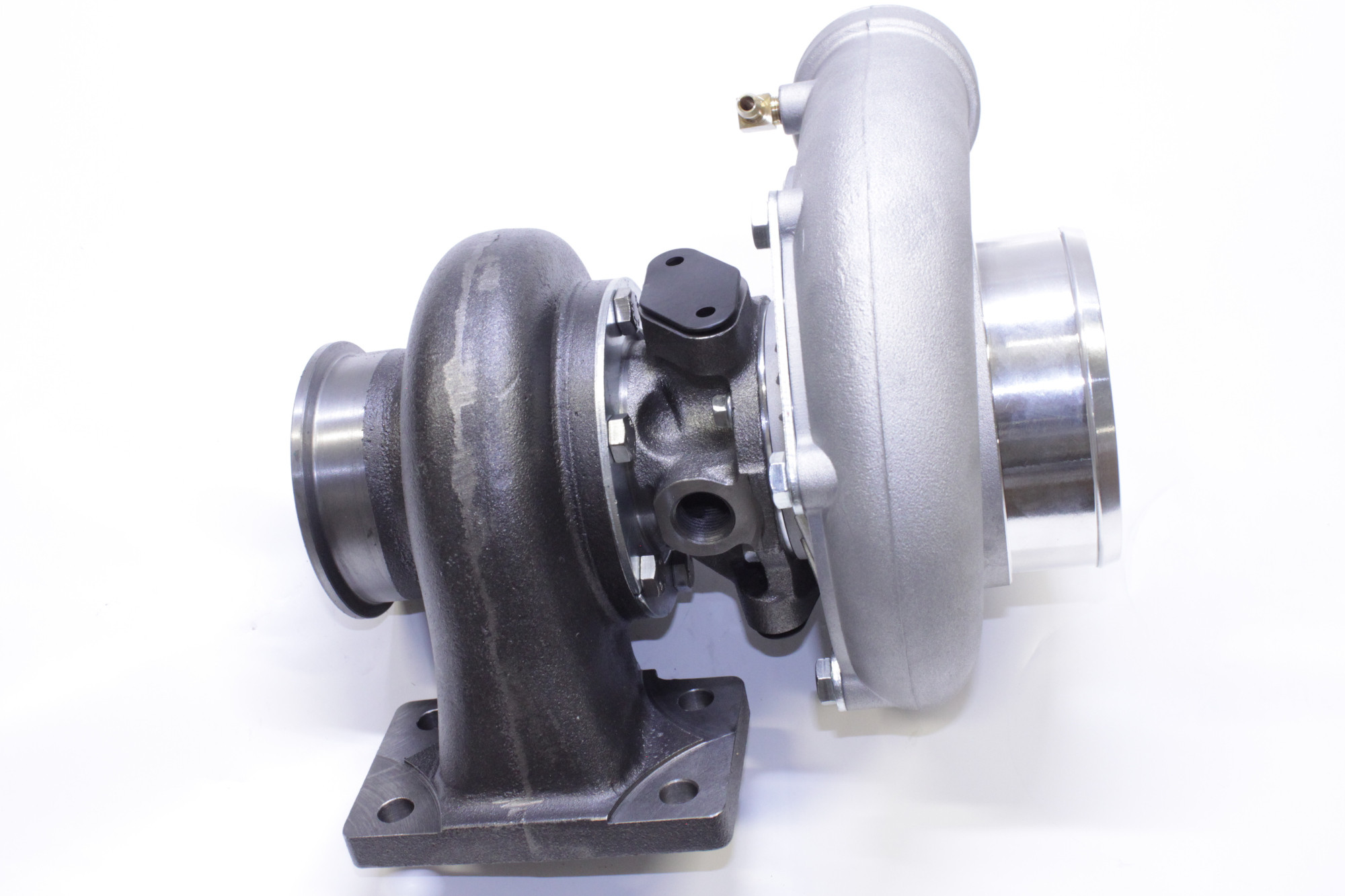

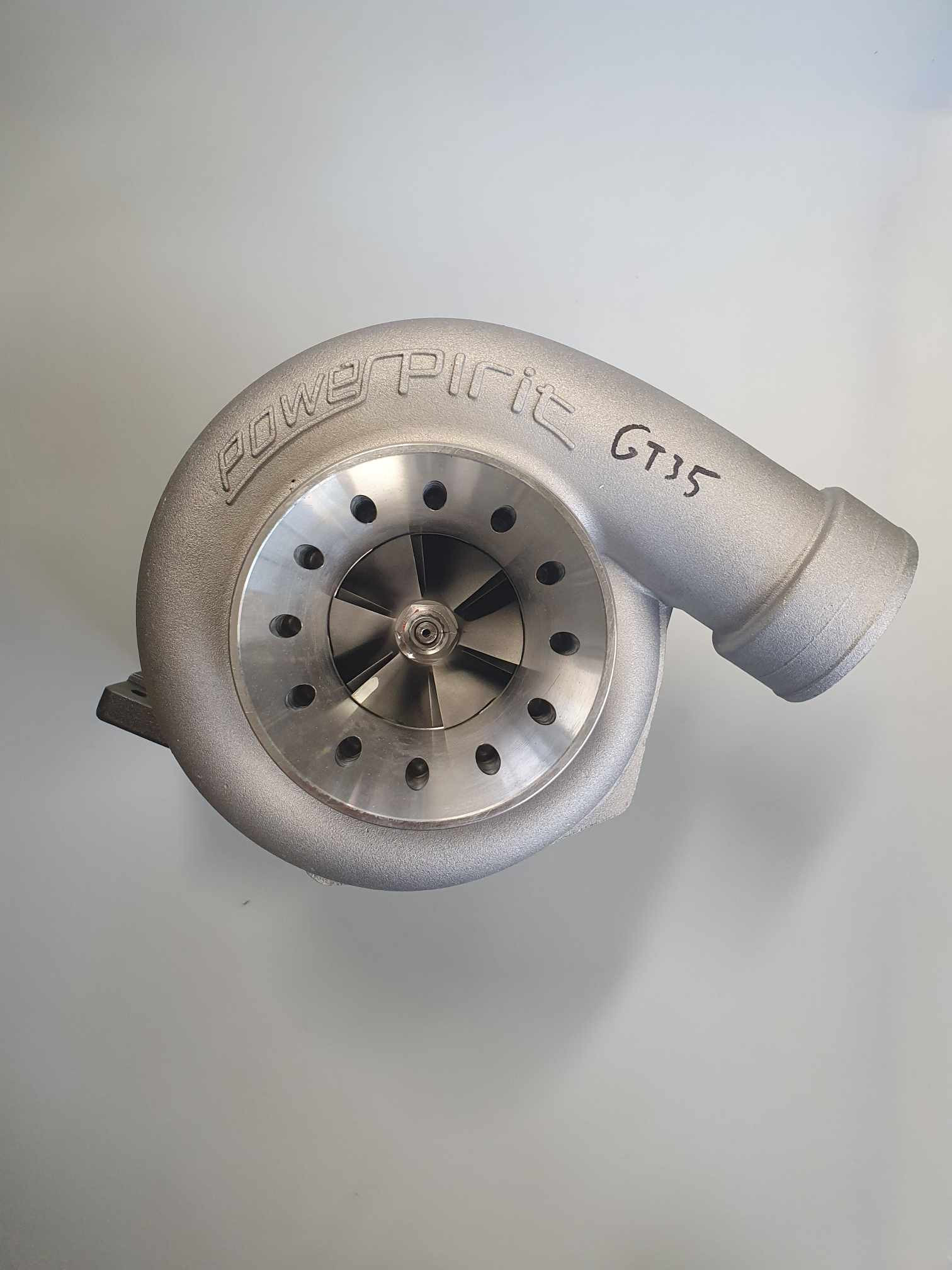

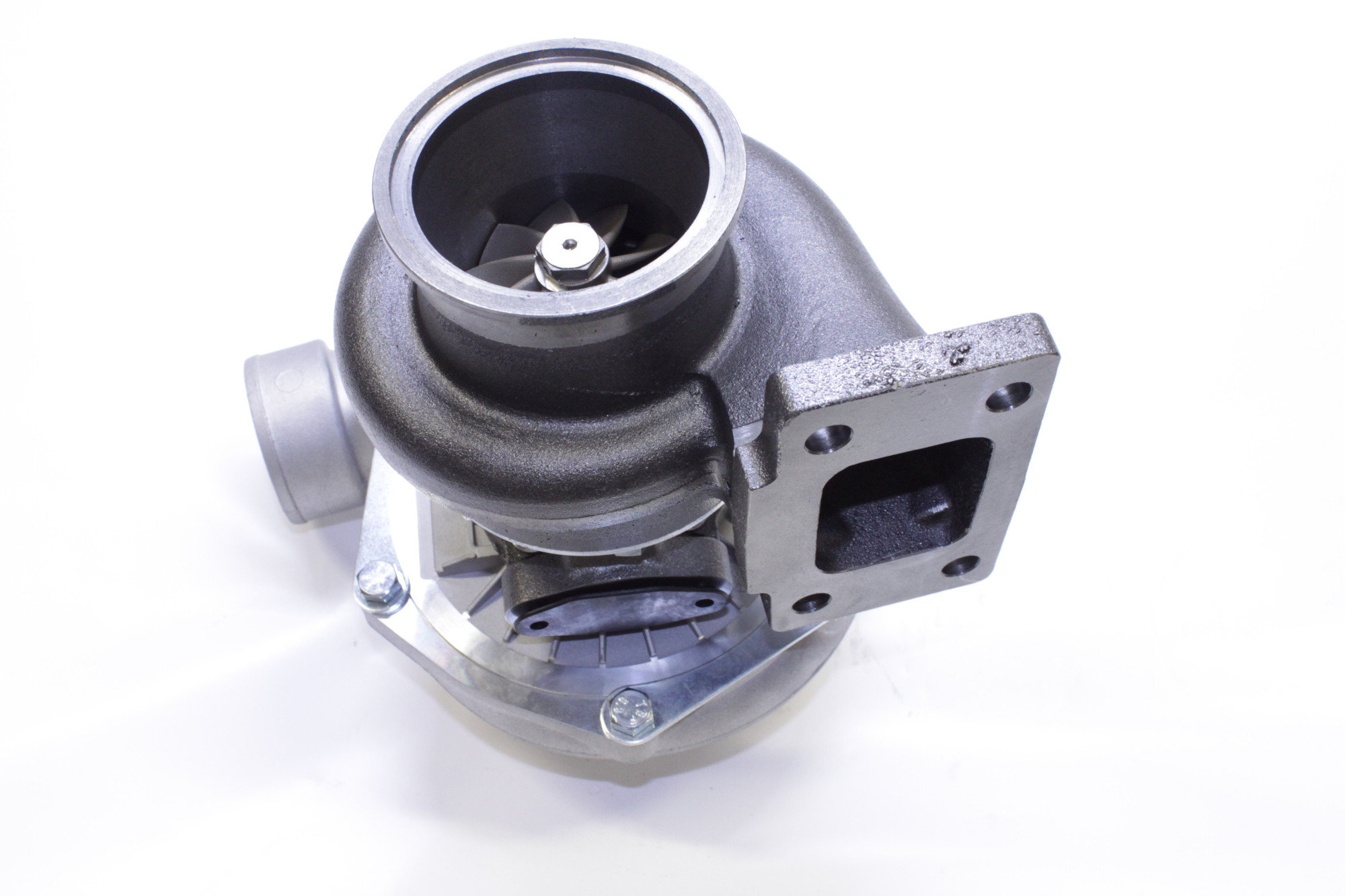

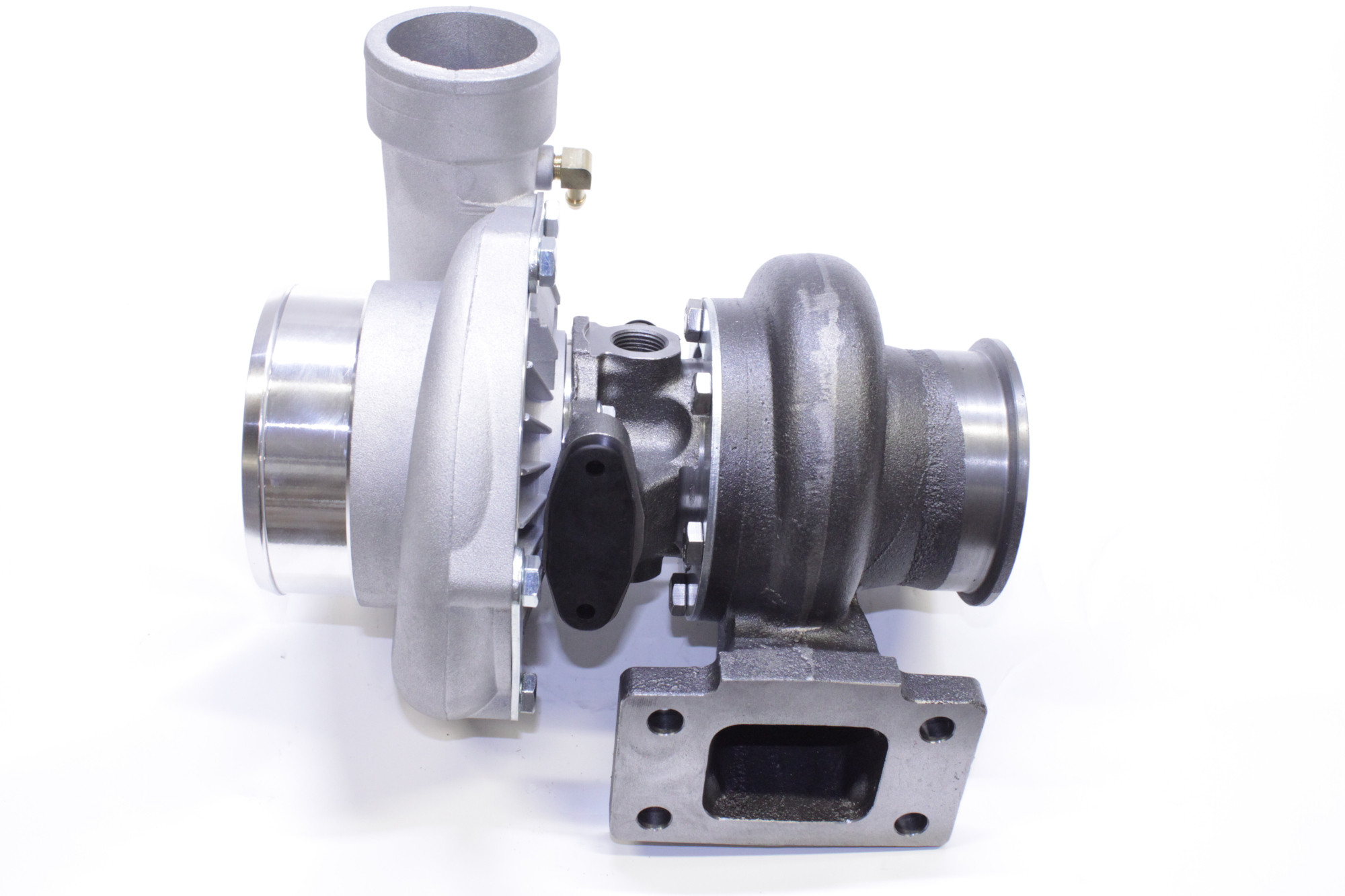

Turbo GT35-6162 A/R 0,63
GT35 Tuning turbo with 360 degree plain bearing. Perfect race unit for 2.0-4.5L. When mounted on smaller engines you can expect full boost pressure at slightly higher rpm. Output 450hp-620hp. Flange in turbine: T3 Flange out turbine: 4 bolt …
Description
GT35 Turbo with 360 degree journal bearing.
Perfect race turbo to 2.0-4.5l. When mounting on smaller engines, you can expect full charge pressure at slightly higher speeds.
Out power 450hp-620hp.
Flange in turbine: t3
Flange out turbine: V-band 90mm for welding against 76mm tube (choose whether you want it from the roll list)
Hose connection compressor in 100mm
Hose connection compressor out 64mm
Water cooling. Connection M18x1.5mm.
Buy Connection: Click here or in the Roll List
Oil in. Thread M12x1.25mm, or Flinders with Bolt Division 38mm
Oil out. Bullying 51mm
For separate Wastegate.
Compressor Trim 48 Exd 81.7mm Ind 61mm A/R 0.70
Surge channels in the compressor.
Turbine Trim 55 Ind 67.8mm Exd 62mm A/R 0.63
10-leafy high-flow turbine provides large flow on small diameter for less inertia and faster response.
We also have loose flanges and gaskets for the unit if you build yourself.
This comes along:
T3 Packing
Banjobult
Oil restrictions
As well as 2 gaskets for oil in and out
