Turbo TD05 20G
Upgrade turbo for Subaru or custom builds. Up to 400 hpSame exhaust as 18G but slightly larger compressor.By far the most popular turbo for Subaru! If you are looking for a street/track turbo look no further, the TR TD05-20G turbo makes …
Artnr: H2M-td05-20g
Stock Status:
In Stock
Delivery Status: Will be sent as soon as possible
The product is normally in stock for direct delivery.
Description
Upgrade turbo for subaru or custom builds. Up to 400 hp
Same exhaust as 18G but slightly larger compressor.
By far the most popular turbo for Subaru! If you are looking for a street/track turbo look no further, the TR TD05-20G turbo makes an excellent street and track turbo. This turbo is capable of up to 400WHP and maintains a street drivability when you are off the track. With a larger wheel blades then the TR TD05-18G this turbo can handle mid to high end horsepower without increasing the lag time on the turbo when compared to stock. The turbo comes with all fittings and gaskets, ready to bolt on out of the box.
Sliding bearing. Handles pressure up to 28 PSI
Internal Wastegate: 12 PSI
Turbo Manifold Flange: Standard TD05H 5-Bolt Subaru Flange.
Downpipe Flange: Standard TD05 20G
Air In/Out Connections on Compressor: 58mm/ 51mm
Compressor:
Trim: 50
A/R: .49
Inducer: 52.50mm
Exducer: 68.00mm
Turbine:
Trim: 77
A/R: .70
Inducer: 56.00mm
Exducer: 49.20mm
Contents:
1 X TD05 Turbo

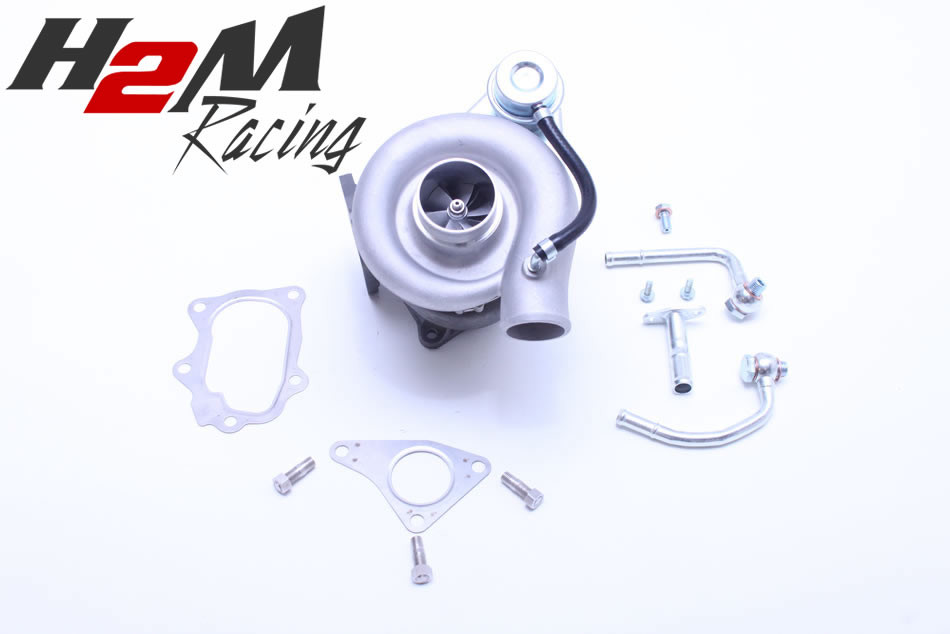

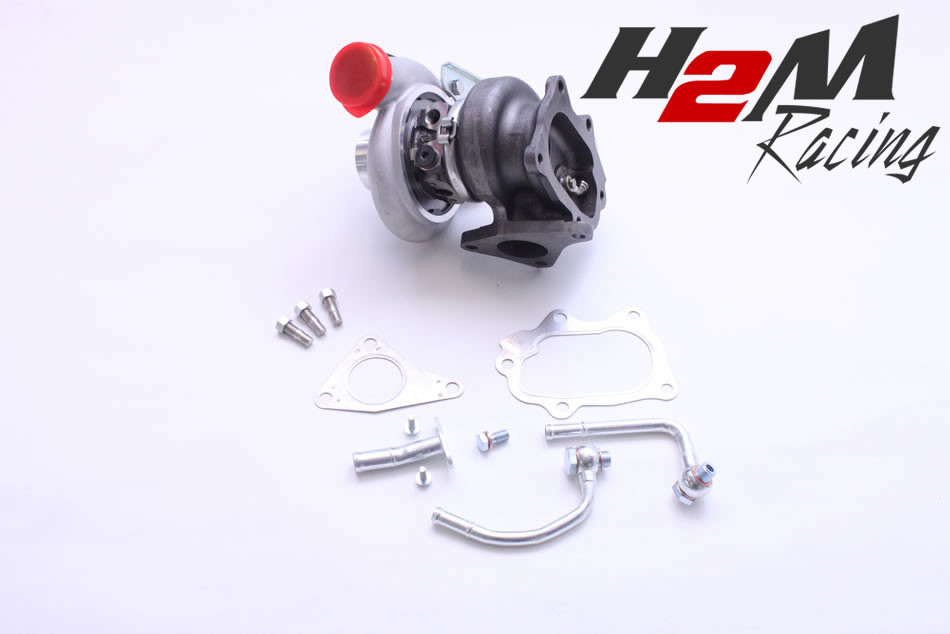

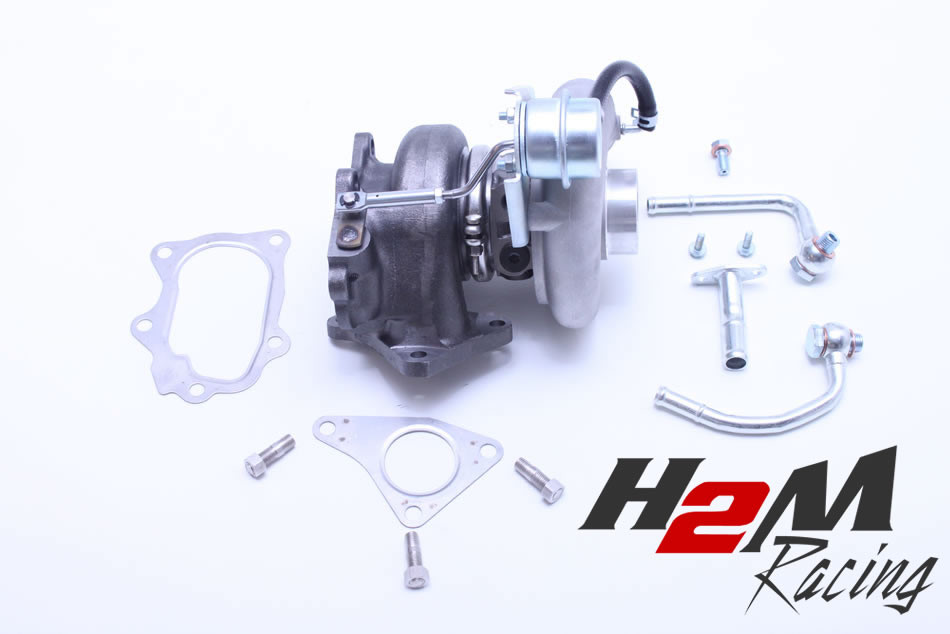

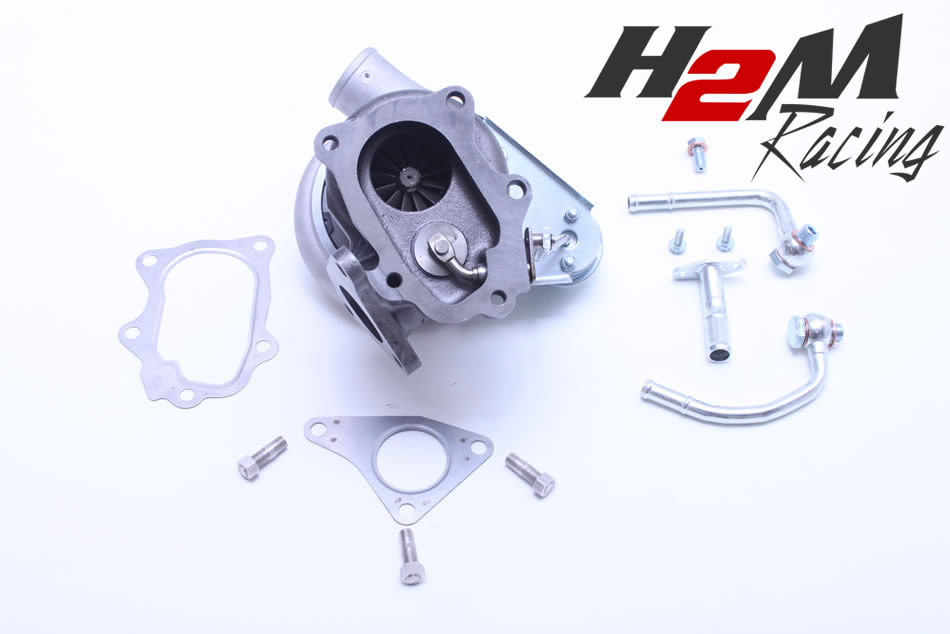

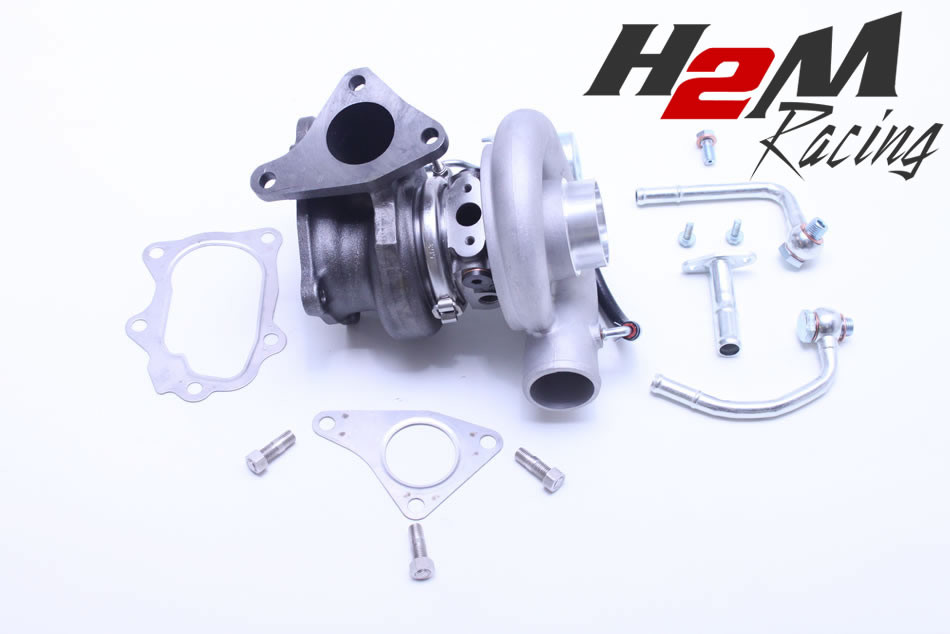

Gaskets bolts and wires as shown.
Fits:
02-07 Subaru Impreza WRX/ STi GD/ GG
(Cars with these engines: 2.0L/ 2.5L EJ20/ EJ25 H4 )
Downpipe flange can be found here
Turbo flange can be found here
