Turbo GT30-5555 AR 0,63

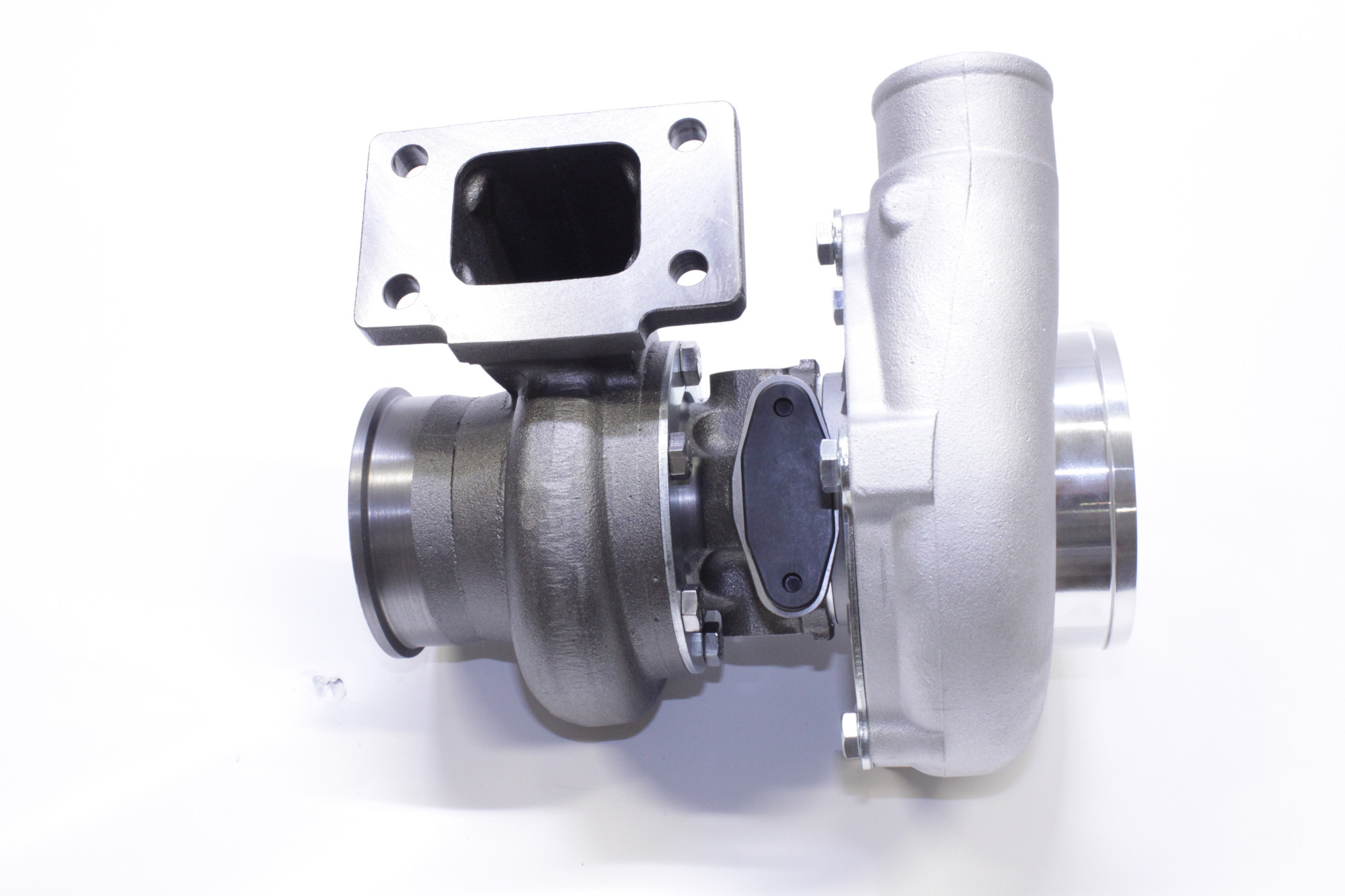

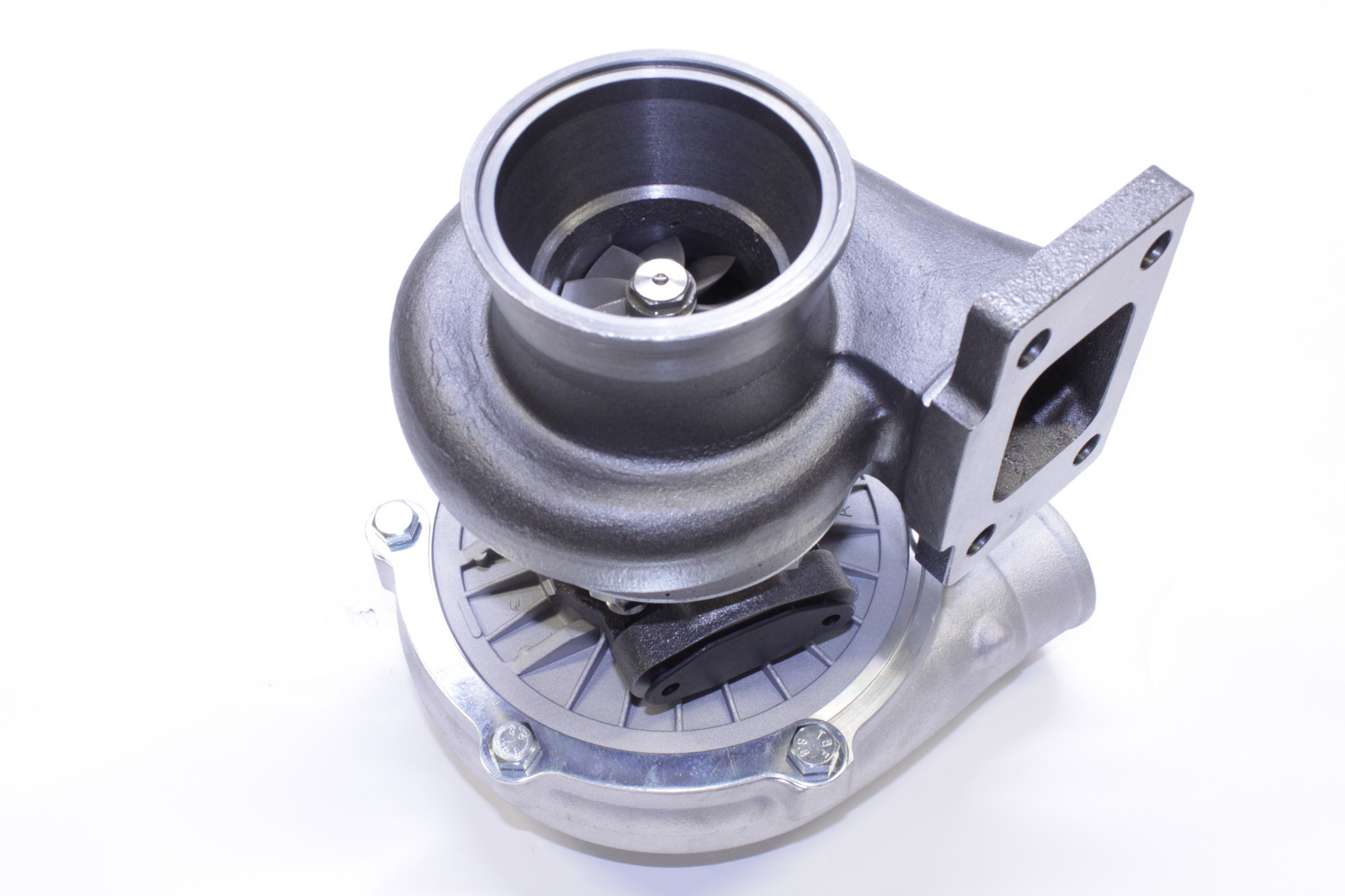

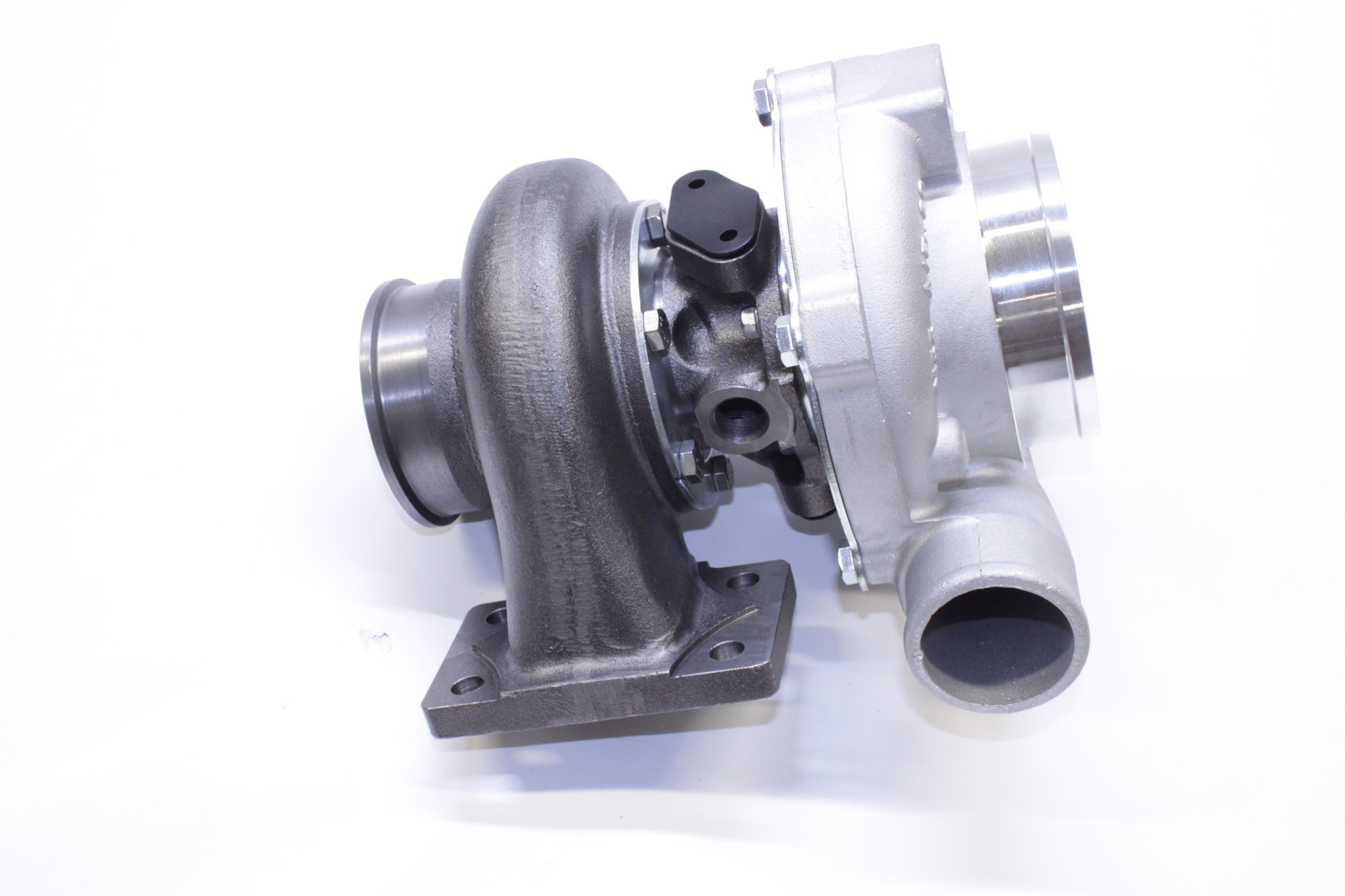

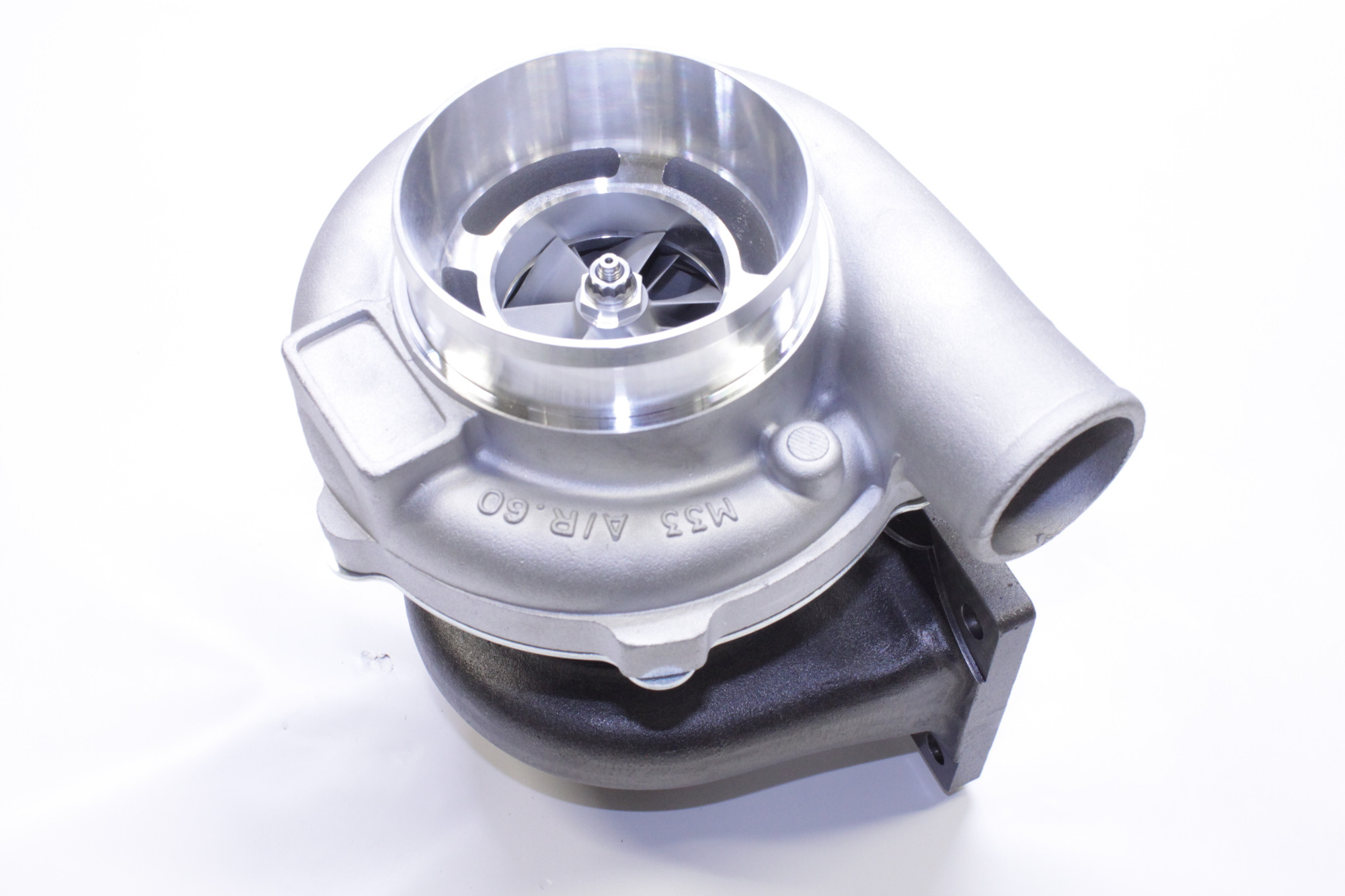

GT3076 Tuning turbo with 360 degree plain bearing. Perfect race unit for 2.0-3.0L. When mounted on smaller engines you can expect full boost pressure at slightly higher rpm. Output 350hp-540hp.
Description
New model 2021-07-30 with V-band at the exhaust house!
GT3076 Trimmings Turbo with 360 degree sliding layer.
Perfect race unit to 2.0-3.0l. When mounting on smaller engines, you can expect full charge pressure at slightly higher speeds.
Out power 350hp-540hp.
Hose connection compressor in 100mm
Hose connection compressor out 52mm
Flange in turbine: t3
Flange out turbine: V-band 90mm for welding against 76mm tube (choose whether you want it from the roll list)
Water cooling. Connection M18x1.5mm
Buy Connection: Click here or in the Roll List
We recommend that you plug in the water cooling. And that the oil maintenance is supplied is used.
Oil in. Thread M12x1.25mm, or Flinders with Bolt Division 38mm
Oil out. Bullying 51mm
For separate Wastegate.
Compressor Trim 52 Exd 76.2mm Ind 55mm A/R 0.60
Turbine trim 84 ind 60mm eg 55mm a/r 0.63
10-leafy high-flow turbine provides large flow on small diameter for less inertia and faster response.
We also have loose flanges and gaskets for the unit if you build yourself.
This comes along:
T3 Packing
Banjobult
Oil restrictions
As well as 2 packs for oil in and out
